Electrical protection up to 1150Vac from LS Electric for photovoltaic systems

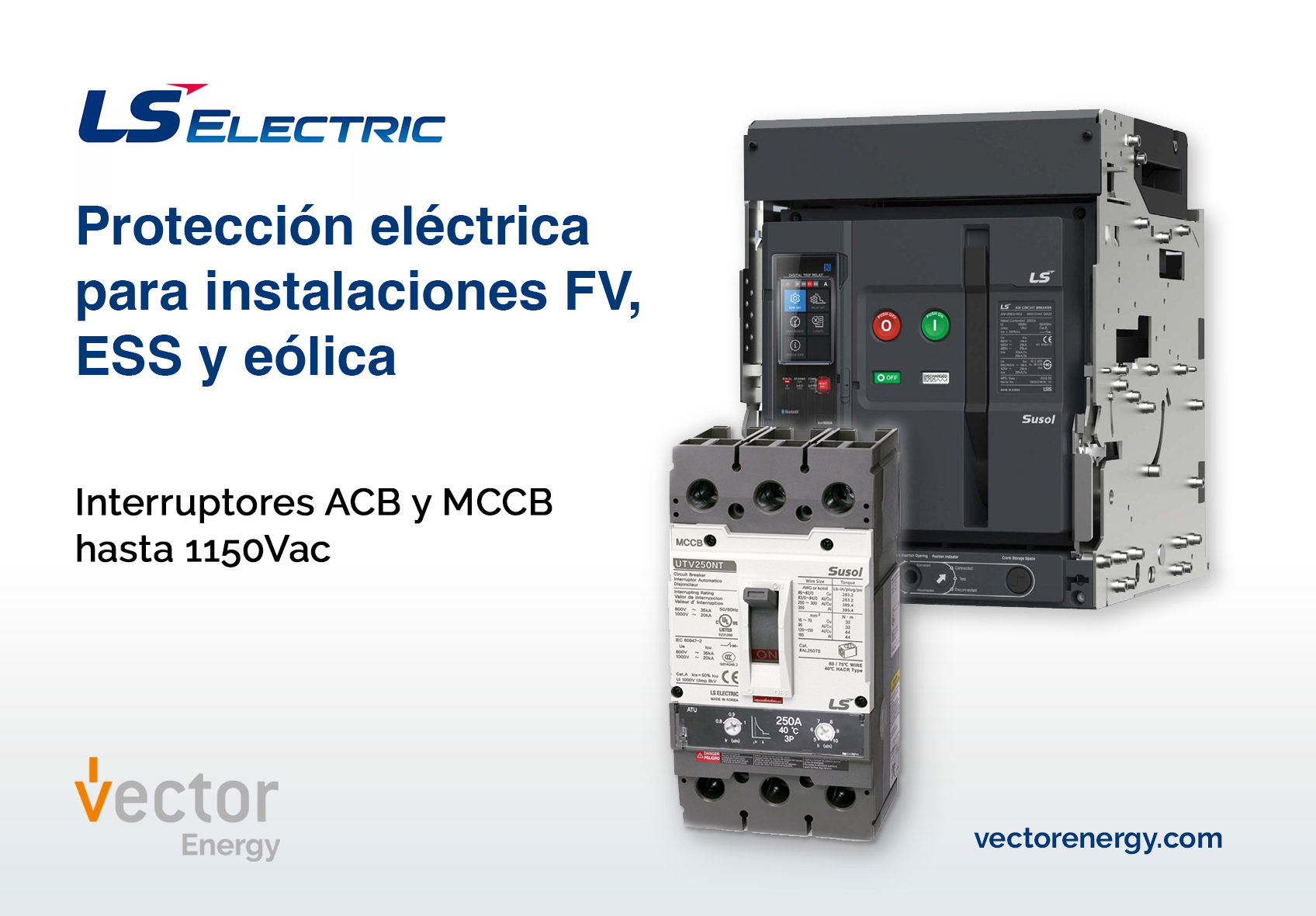

Vector Energy It presents a complete solution of automatic switches in Open frame (ACB) y Molded case circuit breaker (MCCB) for the electrical protection of high-performance installations such as photovoltaic systems, energy storage systems (ESS), and wind generators located at high altitudes.

This new range of switches is ideal for electrical installations where the voltage level rises to 1000Vac or 1150Vac, voltages that are increasingly common, especially in photovoltaic installations. Both devices are available in a compact format, in 3-pole and 4-pole versions, and are distinguished by their high mechanical and electrical durability to ensure the supply of the installation.

The ACB model AV range of switches offers a high breaking capacity of up to 75kA@800Vac and 50kA@1150Vac with intensities ranging from 400A to 4000A and various options for configuring accessories, both the frame body and the STU control unit and its protection, control and communication capabilities.

The UTV model MCCB switchgear allows for a cut-off power of 40kA@800Vac and 20kA@1000Vac, and intensities from 60A to 250A. They are dual-certified IEC/UL. Additionally, they feature different trigger unit options (FMU, ATU) and a wide range of accessories to adapt them to the needs of each installation: auxiliary contacts, trigger coils, rotary controls and locks or motorized drives, among others.

Vector Energy is a company specializing in renewable energy, energy efficiency, automation and industrial control and is the partner in Spain and Portugal of LS Electric.

Contact us for more information or any questions:

Phone numbers: 935 748 206
